CE-Certified & Energy-Efficient Fiber Laser Solutions

High-precision plate, tube, and integrated cutting systems engineered for sustainable manufacturing and maximum productivity.

Request a Technical Quote
Why Choose Us
Open Exchange Table Fiber Laser Cutting Machine Power Range: 1500W – 20000W - Image 1
Open Exchange Table Fiber Laser Cutting Machine Power Range: 1500W – 20000W - Image 2
Open Exchange Table Fiber Laser Cutting Machine Power Range: 1500W – 20000W - Image 3
Open Exchange Table Fiber Laser Cutting Machine Power Range: 1500W – 20000W - Image 4
Click to enlarge

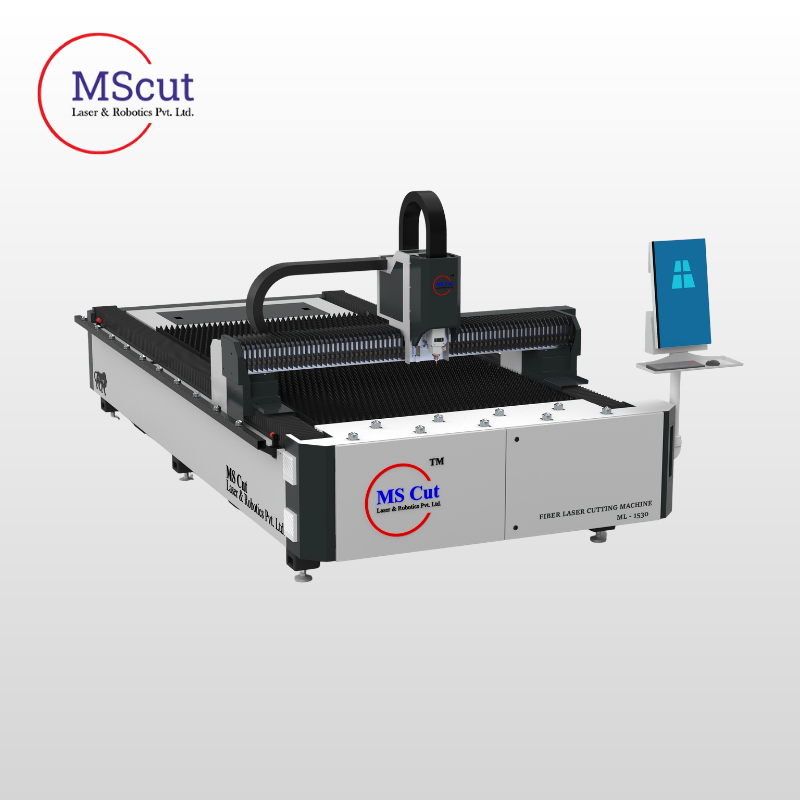

Open Exchange Table Fiber Laser Cutting Machine Power Range: 1500W – 20000W

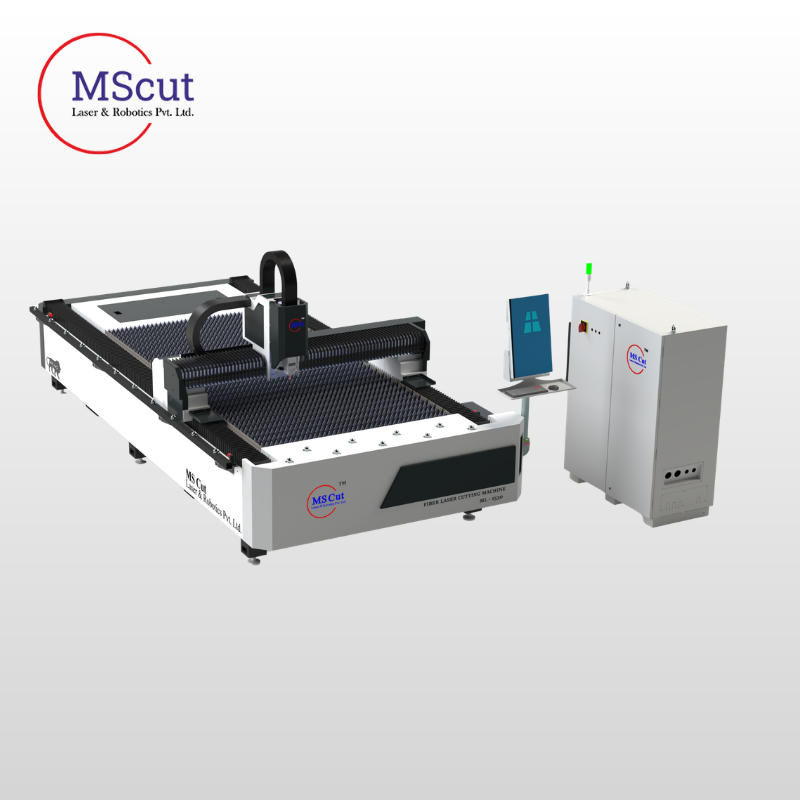

Open Exchange Table Fiber Laser Cutting Machine Power Range: 1500W – 20000W - Image 2
Open Exchange Table Fiber Laser Cutting Machine Power Range: 1500W – 20000W - Image 3
Open Exchange Table Fiber Laser Cutting Machine Power Range: 1500W – 20000W - Image 4
Whatsapp

+91 9638868149

Envelope

info@mscutlaser.in

Contact the product manager for consultation and get a discounted quote.

Contact Form Demo

Open Exchange Table Fiber Laser Cutting Machine Power Range: 1500W – 20000W

Specification Details
Power Range 1500W – 20000W
Working Area 1530 × 3050 mm / 2040 × 4050 mm / 2065 × 6500 mm / 2565 × 6500 mm
Exchange Table Automatic Dual Pallet Exchange
Max Cutting Speed Up to 120 m/min
Max Acceleration 1.0G
Positioning Accuracy ±0.03 mm
Repeat Positioning Accuracy ±0.02 mm
Control System Intelligent CNC Control
Laser Head Auto Focus Laser Head
Transmission Rack & Pinion Drive
Cooling System Industrial Water Chiller
Suitable Materials Carbon Steel, Stainless Steel, Aluminum, Brass, Copper, Galvanized Steel
Applications Sheet Metal Fabrication, Automotive, Elevator, Aerospace, Agriculture, Engine
CLICK TO INQUIRE
Specification MSE-1530 MSE-2040 MSE-2065 MSE-2565
Working Area (mm) 1500 × 3000 2000 × 4000 2000 × 6500 2500 × 6500
Laser Power 1500W–20000W 1500W–20000W 1500W–20000W 1500W–20000W
Pallet Exchange Time 25 sec 35 sec 40 sec 45 sec
Max Cutting Speed 120 m/min 120 m/min 120 m/min 120 m/min
Max Acceleration 1.0 G 1.0 G 1.0 G 1.0 G
Positioning Accuracy ±0.03 mm ±0.03 mm ±0.03 mm ±0.03 mm
Repeat Position Accuracy ±0.02 mm ±0.02 mm ±0.02 mm ±0.02 mm
Laser Source Raycus / MAX / IPG Raycus / MAX / IPG Raycus / MAX / IPG Raycus / MAX / IPG
Laser Head RayTools / BOCI RayTools / BOCI RayTools / BOCI RayTools / BOCI
Control System FSCUT CNC FSCUT CNC FSCUT CNC FSCUT CNC
Drive System Servo Motor Servo Motor Servo Motor Servo Motor
Cooling System Industrial Water Chiller Industrial Water Chiller Industrial Water Chiller Industrial Water Chiller
Power Supply 380V, 3 Phase, 50/60Hz 380V, 3 Phase, 50/60Hz 380V, 3 Phase, 50/60Hz 380V, 3 Phase, 50/60Hz
Supported Materials MS, SS, Aluminium, Brass, Copper MS, SS, Aluminium, Brass, Copper MS, SS, Aluminium, Brass, Copper MS, SS, Aluminium, Brass, Copper

Related products

Compare
Quick view
Add to wishlist

Ultra-High Power Fiber Laser Cutting Machine Power Range: 6000W – 60000W

Read more
Compare
Quick view
Add to wishlist

Closed Exchange Table Fiber Laser Cutting Machine Power Range: 3000W – 20000W

Read more
Compare
Quick view
Add to wishlist

Compact Single Table Fiber Laser Cutting Machine Power Range: 1500W – 20000W

Read more

    FAQs

    For more questions, please contact us.

    What materials can fiber laser cutting machines cut?

    Fiber laser cutting machines can cut most metal materials, including stainless steel, carbon steel, aluminum, copper, alloy steel, galvanized sheet, titanium, etc. They are widely used in sheet metal processing, kitchen utensils, aerospace, metal cabinets, automotive parts, construction and other industries.

    Laser cutting technology has significant comprehensive advantages over traditional cutting methods (such as flame cutting, plasma cutting, waterjet cutting).

    High precision laser cutting, narrow kerf width, smooth and burr-free, small heat-affected zone, no need for secondary grinding and polishing.

    Non-contact processing, no mechanical stress, avoiding tool wear or material deformation.

    Fiber laser cutting machines require professional laser cutting control software and CAM software to process design files and generate cutting paths, such as LightBurn, AutoCA, etc., and are compatible with DXF, SVG, AI (Adobe Illustrator), EPS, DWG, PDF, PLT, etc.

    Fiber laser cutting machines require professional laser cutting control software and CAM software to process design files and generate cutting paths, such as LightBurn, AutoCA, etc., and are compatible with DXF, SVG, AI (Adobe Illustrator), EPS, DWG, PDF, PLT, etc.

    Clean or replace the optics (focusing mirror, reflector) and nozzle regularly to avoid contamination affecting the cutting quality.

    Check the operation status of the cooling system (water-cooled or air-cooled) to ensure that the water temperature and flow rate are normal to prevent the laser from overheating.

    Clean the debris of the guide rail, screw and other transmission parts and lubricate them regularly to ensure the precision of movement; check the filtering device of the dust removal system and clean the soot residue in time.

    Free Training

    Provide free training on equipment operation

    Regular maintenance

    Provide professional equipment maintenance services

    Installation Service

    Provide complete installation and debugging services

    Technical Support

    24/7 online technical support service
